PCB design,
automated.

From a product description to manufacturing-ready files. Designed, simulated, and reviewed — before you print.

One prompt.
Manufacturing-ready files.
Describe what your board needs to do. PromptPCB handles part selection, schematic capture, layout, simulation, and review — then hands you Gerbers.
prompt
"Design a 4-layer board with USB-C power input, LiPo charging, a 3.3V buck regulator, SPI flash, Ethernet, and an SWD debug header."
32
Components placed
22
Nets routed
$12
BOM cost
PASS
DRC clean

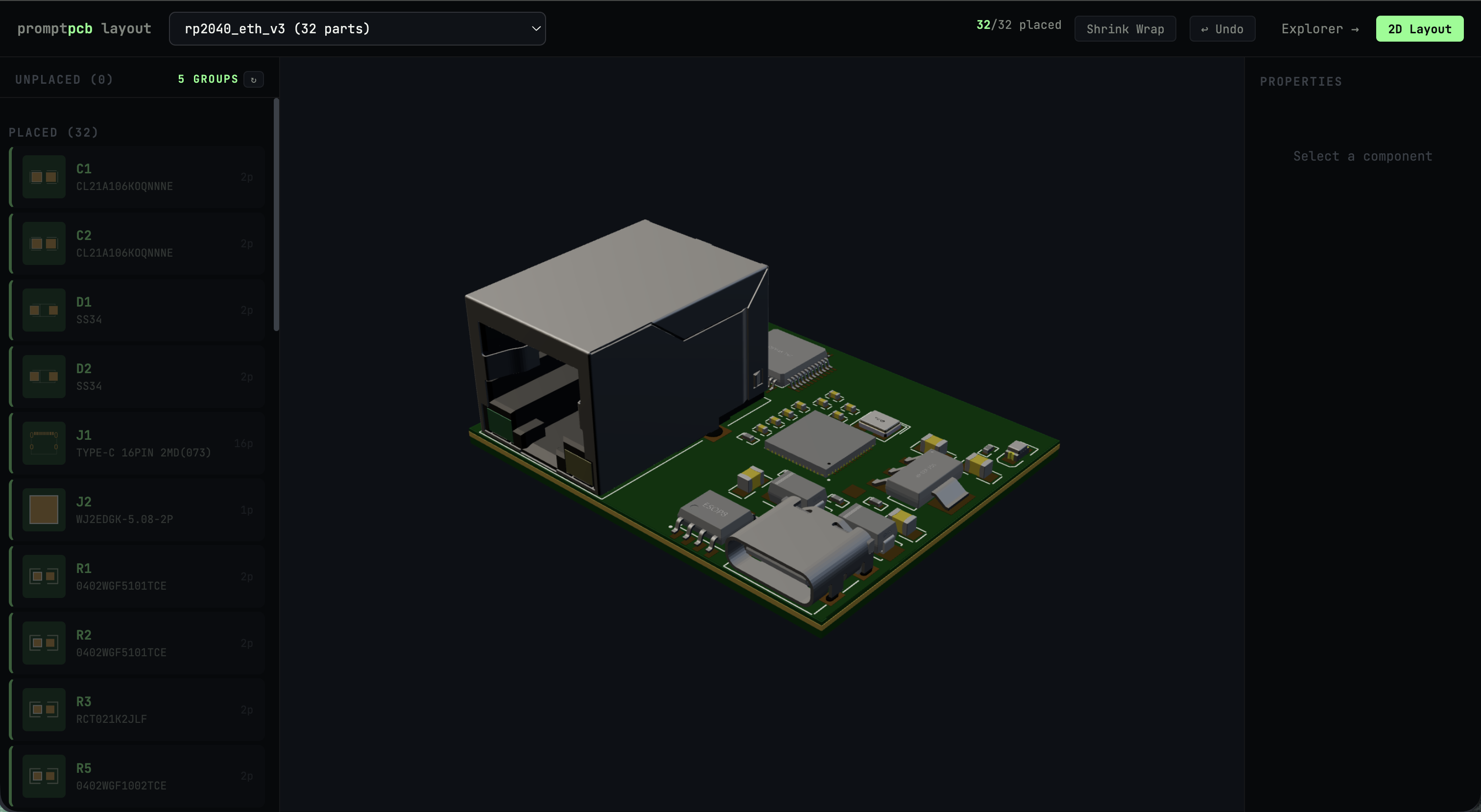

3D board preview
3D PCB render

12 steps. 10 automated.
Every connection checked against every datasheet. Every trace sized for current. Every rule verified against your manufacturer's specs.
AUTO
01

Requirements

Extract specs from a natural language description.

AUTO
02

Architecture

Map subsystems, power rails, and bus interfaces.

AUTO
03

Part Selection

Source every component from real parts libraries. In stock, verified.

AUTO
04

Datasheet Analysis

Read every datasheet. Extract pins, ratings, thermal limits, app notes.

AUTO
05

Schematic

Wire every component. Decoupling, pull-ups, boot config from datasheet rules.

AUTO
06

Design Review

Check every connection against every datasheet. Catch real bugs.

AUTO
07

Simulation

DC and transient analysis. Voltage rails, thermal heatmap, oscilloscope.

ASSIST
08

Layout

Place components with zero overlaps. Grouped by function, optimized for routing.

ASSIST
09

Routing

Connect traces with current-aware widths. Multi-layer stackup.

AUTO
10

DRC

Validate against manufacturer specs. Clearance, annular rings, drill sizes.

AUTO
11

Gerbers

Generate manufacturing files. Gerber, BOM, pick-and-place CSV.

MANUAL
12

Bring-up

The only step that still needs a human.

Explore the full pipeline

Bugs found.
Zero boards wasted.
The design review catches real issues that would cost you a fab run. Not theoretical — these are bugs found in actual designs.
3
Issues caught before manufacturing

Output capacitor underrated for regulator stability. Board would brown-out under load.

MCU power pin not connected. Chip would never boot — invisible on a schematic review.

Boot configuration pins floating. Microcontroller would enter wrong boot mode on power-up.


Not just schematics.
Physics simulation.
DC analysis, transient simulation, thermal heatmap, and live oscilloscope traces — all running on the actual circuit before you fab.
V

Every voltage rail verified against datasheet specs

T

Thermal heatmap shows hotspots before you power on

~

Oscilloscope traces for transient behavior and timing

I

Current flow visualization across every trace

LED blinking 1Hz
Thermal heatmap
Oscilloscope traces

Built with PromptPCB

RK3588S Single Board Computer

330 components. 8-layer HDI. 12+ power rails. Octa-core with 6 TOPS NPU. Designed from a sentence, validated end-to-end, manufactured at JLCPCB.
330
Components
8-layer
HDI stackup
12+
Power rails
85×56mm
RPi form factor
Full Linux SBC from a prompt. Every part sourced from JLCPCB stock. Every pin connection validated against datasheets. Every power rail simulated. This is what automated hardware design looks like at scale.

RK3588S

4×A76 + 4×A55, Mali-G610, 6T NPU

8GB LPDDR4X

+ 32GB eMMC 5.1 storage

RK806 PMIC

10 buck + 2 LDO rails, full sequencing

USB-C PD

CH224K sink, MP2315 5V buck, reverse protection

Connectivity

GbE (RTL8211F), WiFi/BT, USB 3.0, HDMI 2.1

Expansion

40-pin GPIO, MIPI-CSI camera, PCIe

Explore this design

One prompt.
Manufacturing-ready files.

Join the waitlist and get free access when we launch.

Join the waitlist.

Describe your project. We'll show you what's possible.

Whether you have a specific board in mind or just want to see what automated PCB design looks like — we'd like to hear from you.
